DESCRIPTION |

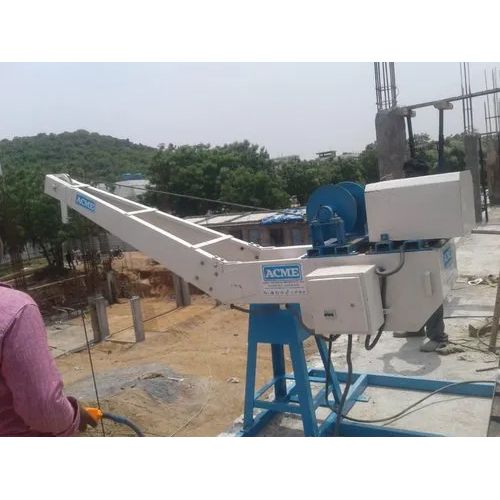

Mini Lift Self Supported Model: ACME-ML500 / ML300 |
|
POWER |
5HP, 3 Phase, Electrical Motor / 3 Phase 3 Phase / Electric Motor |
|
LIFTING CAPACITY |
500 Kg / 300 Kg |
|
SAFE WORKING LOAD |
350 Kg |
|
MAXIMUM HEIGHT |
Up to 30 Mtrs |
|
SPEED |
12-15 Mtrs / Min |
|
CONTROL |
PUSH BUTTON |
|
BRAKES |
Fail safe Electro Magnetic shoe Brake |
|
WIRE ROPE |
10 mm dia |
|
ROTATING BOOM |
360 degrees |
|
COUNTER WEIGHT |
500 Kg Counter Weight should be provided at site, before operation. |
|
ANCHORING OF LIFT |
Anchoring of lift should be done with the help anchoring bolt, wire rope etc. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|


Price:
Price 165000 INR / Unit
Minimum Order Quantity : 1 Unit
Material : Stainless Steel
Max. Lifting Height : 30 Meter (m)
Capacity : 500 Kg
Power Supply : Electricity
![]() |
